240-W Supply Targets Robot Control, Features EN62477-1 OVC III Certification

By Lee Teschler | January 19, 2018

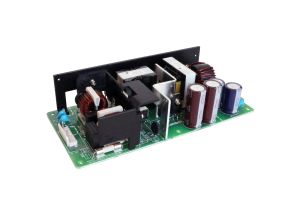

The ZWS240RC-24 ac-dc power supply is rated at 240-W output power. This model is an addition to TDK-Lambda’s widely used long-life ZWS series of 10 to 300-W industrial power supplies. Certification to Over Voltage Category (OVC) III enables direct connection to the incoming ac distribution panel, saving the cost and space of an isolation transformer. Target applications include robot and other machine controllers needing a greater degree of protection from incoming input voltage line transients.

The ZWS240RC-24 accepts an 85 to 265 Vac input and can operate convection cooled in zws240rcambient temperatures of up to +70°C, derating linearly above 50°C by 3.5%/°C. The 24-V output voltage is adjustable from 21.6 to 26.4 V to accommodate non-standard voltages. Overall product dimensions are 84x42x18 0mm.

Typical hold-up times are 31 msec, providing additional protection against extended input voltage dips. Like all ZWS models the ZWS240RC-24 has a warranty of five years, supported by electrolytic capacitor lifetimes of 12-years, for superior operating field life.

The power supply is certified to IEC/EN62477-1 OVC III, IEC/EN/UL/CSA 60950-1 with CE marking for the Low Voltage, EMC and RoHS2 Directives. The model is also compliant to EN 55011, EN 55032 Class B conducted and Class A radiated emissions, EN 61000-3-2 harmonics and IEC 61000-4 immunity standards.

TDK-Lambda Americas, 401 Mile of Cars Way, Suite 325 National City, CA 91950, 800-LAMBDA-4, http://www.us.tdk-lambda.com/lp/products/zws-series.htm. Product availability for all the ZWS power supplies can be found via the link to TDK-Lambda’s distributor network (see “Check Distributor Stock to Buy”) at http://www.us.tdk-lambda.com/lp/.
