Jellyfish unharmed by new soft robotic underwater gripper

By The Robot Report Staff | August 28, 2019

Jellyfish are about 95% water, making them some of the most diaphanous, delicate animals on the planet. But the remaining 5% of them have yielded important scientific discoveries, like green fluorescent protein that is now used extensively by scientists to study gene expression and life-cycle reversal that could hold the keys to combating aging. Jellyfish may very well harbor other secrets, but the difficulty of collecting them has severely limited the study of such “forgotten fauna.”

The sampling tools available to marine biologists on remotely operated vehicles (ROVs) were largely developed for the marine oil and gas industries. They are much better-suited to grasping and manipulating rocks and heavy equipment than jellies, often shredding them to pieces in attempts to capture them.

Firm but gentle grasp

Now, technology developed by researchers at Harvard University’s Wyss Institute for Biologically Inspired Engineering, John A. Paulson School of Engineering and Applied Sciences (SEAS), and Baruch College at the City University of New York (CUNY) offers a novel solution to that problem. The scientists have built an ultra-soft, underwater gripper that uses hydraulic pressure to gently but firmly wrap its fettuccini-like fingers around a single jellyfish, then release it without causing harm. The gripper is described in a new paper published in Science Robotics.

“Our ultra-gentle gripper is a clear improvement over existing deep-sea sampling devices for jellies and other soft-bodied creatures that are otherwise nearly impossible to collect intact,” said first author Nina Sinatra, Ph.D., a former graduate student at the Wyss Institute who is now a mechanical and materials engineer at Google LLC. “This technology can also be extended to improve underwater analysis techniques and allow extensive study of the ecological and genetic features of marine organisms without taking them out of the water.”

Jellyfish gripper design

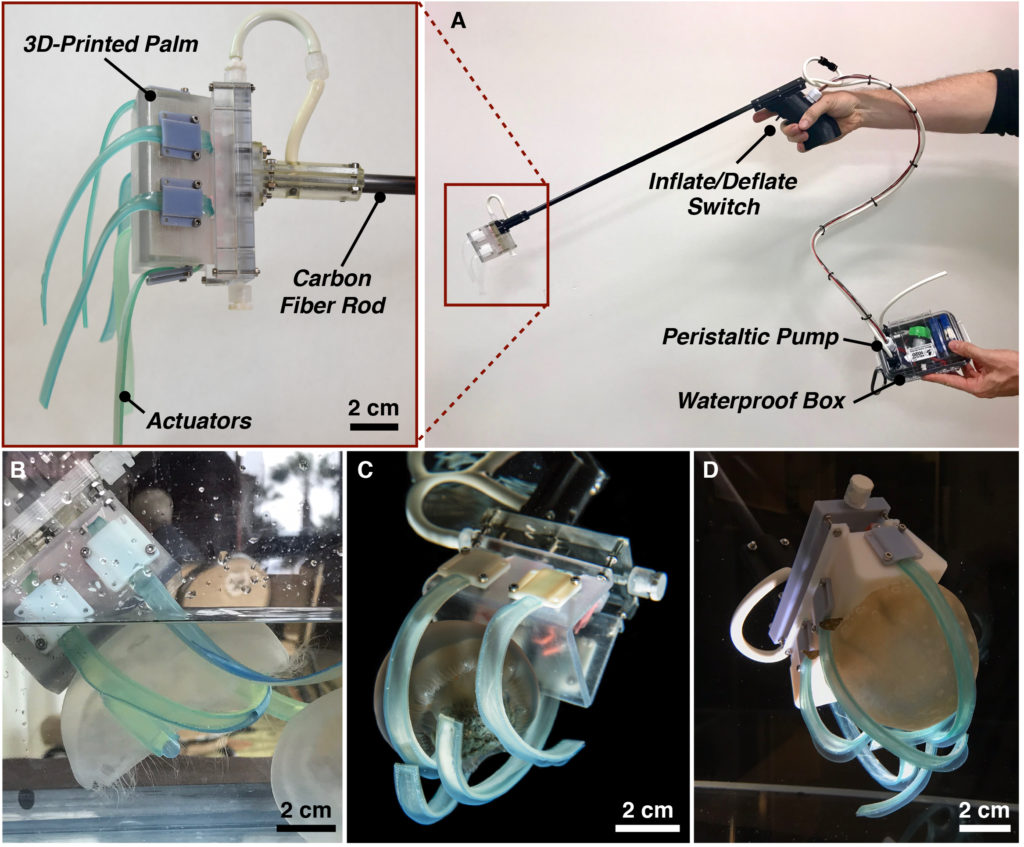

Design of soft robotic gripping device, shown with a four-actuator hub. Inset: Different parts, including the six-actuator palm, can be attached modularly. Soft fiber-reinforced actuators grasping (B) Aurelia aurita, (C) Catostylus mosaicus, and (D) Mastigias papua (C-D). Credit: Anand Varma

The gripper’s six “fingers” are composed of thin, flat strips of silicone with a hollow channel inside bonded to a layer of flexible but stiffer polymer nanofibers. The fingers are attached to a rectangular, 3D-printed plastic “palm” and, when their channels are filled with water, they curl in the direction of the nanofiber-coated side.

The fingers each exert an extremely low amount of pressure — about 0.0455 kPA, or less than one-tenth of the pressure of a human’s eyelid on their eye. By contrast, current state-of-the-art soft marine grippers, which are used to capture delicate but more robust animals than jellyfish, exert about 1 kPA.

Jellyfish testing

The researchers fitted their ultra-gentle gripper to a specially created hand-held device and tested its ability to grasp an artificial silicone jellyfish in a tank of water to determine the positioning and precision required to collect a sample successfully, as well as the optimum angle and speed at which to capture a jellyfish.

They then moved on to the real thing at the New England Aquarium, where they used the grippers to grab swimming moon jellies, jelly blubbers, and spotted jellies, all about the size of a golf ball.

The gripper was successfully able to trap each jellyfish against the palm of the device, and the jellyfish were unable to break free from the fingers’ grasp until the gripper was depressurized. The jellyfish showed no signs of stress or other adverse effects after being released, and the fingers were able to open and close roughly 100 times before showing signs of wear and tear.

“Marine biologists have been waiting a long time for a tool that replicates the gentleness of human hands in interacting with delicate animals like jellyfish from inaccessible environments,” said co-author David Gruber, Ph.D., a professor of biology and environmental science at Baruch College, CUNY, and a National Geographic Explorer. “This gripper is part of an ever-growing soft robotic toolbox that promises to make underwater species collection easier and safer, which would greatly improve the pace and quality of research on animals that have been under-studied for hundreds of years, giving us a more complete picture of the complex ecosystems that make up our oceans.”


The Robot Report has launched the Healthcare Robotics Engineering Forum, which will be on Dec. 9-10 in Santa Clara, Calif. The conference and expo focuses on improving the design, development and manufacture of next-generation healthcare robots. Learn more about the Healthcare Robotics Engineering Forum.


Sampling with soft robotics

The ultra-soft gripper is the latest innovation in the use of soft robotics for underwater sampling, an ongoing collaboration between Gruber and Wyss Founding Core Faculty member Rob Wood, Ph.D., that has produced the origami-inspired RAD sampler and multi-functional “squishy fingers” to collect a diverse array of hard-to-capture organisms, including squids, octopuses, sponges, sea whips, corals, and more.

“Soft robotics is an ideal solution to long-standing problems like this one across a wide variety of fields, because it combines the programmability and robustness of traditional robots with unprecedented gentleness thanks to the flexible materials used,” said Wood, who is the co-lead of the Wyss Institute‘s Bioinspired Soft Robotics Platform, the Charles River Professor of Engineering and Applied Sciences at SEAS, and a National Geographic Explorer.

The team is continuing to refine the ultra-soft gripper’s design, and aims to conduct studies that evaluate the jellyfishes’ physiological response to being held by the gripper, to more definitively prove that they do not cause the animals stress.

Wood and Gruber are also co-principal investigators of the Schmidt Ocean Institute’s “Designing the Future” project, and will be further testing their various underwater robots on an upcoming expedition aboard the research ship Falkor in 2020.

Jellyfish ROV

Illustration of the envisioned application of soft robotic actuators (green) attached to a remotely operated vehicle. Credit: Sinatra et al., Science Robotics 4 (2019)

“At the Wyss Institute, we are always asking, ‘How can we make this better?’ I am extremely impressed by the ingenuity and out-of-the-box thinking that Rob Wood and his team have applied to solve a real-world problem that exists in the open ocean, rather than in the laboratory. This could help to greatly advance ocean science,” said Wyss Institute Founding Director Donald Ingber, M.D., Ph.D. He is also the Judah Folkman Professor of Vascular Biology at Harvard Medical School, the Vascular Biology Program at Boston Children’s Hospital, and Professor of Bioengineering at SEAS.

Additional authors of the paper are Clark Teeple, Daniel Vogt, and Kevin Kit Parker, Ph.D., from the Wyss Institute and Harvard SEAS. Parker is a Founding Core Faculty member of the Wyss Institute and the Tarr Family Professor of Bioengineering and Applied Physics at SEAS. The research was supported by the National Science Foundation, The Harvard University Materials Research Science and Engineering Center, The National Academies Keck Futures Initiative, and the National Geographic Society.
