During the current coronavirus pandemic, one of the riskiest parts of a healthcare worker’s job is assessing people who have symptoms of COVID-19. Researchers from Brigham and Women’s Hospital and the Massachusetts Institute of Technology said they hope to reduce that risk by using robots to remotely measure patients’ vital signs.
The Spot quadruped robots, which are controlled by a handheld device, can also carry a tablet that allows doctors to ask patients about their symptoms without being in the same room.
“In robotics, one of our goals is to use automation and robotic technology to remove people from dangerous jobs,” said Henwei Huang, a postdoctoral student at MIT. “We thought it should be possible for us to use a robot to remove the healthcare worker from the risk of directly exposing themselves to the patient.”
Using four cameras mounted on a dog-like robot developed by Boston Dynamics, the researchers have shown that they can measure skin temperature, breathing rate, pulse rate, and blood oxygen saturation in healthy patients, from a distance of 2 meters. They are now making plans to test it in patients with COVID-19 symptoms.
“We are thrilled to have forged this industry-academia partnership in which scientists with engineering and robotics expertise worked with clinical teams at the hospital to bring sophisticated technologies to the bedside,” said Giovanni Traverso, an MIT assistant professor of mechanical engineering who is also a gastroenterologist at Brigham and Women’s Hospital and the senior author of the study.
The researchers have posted a paper on their system on the preprint server techRxiv, and have submitted it to a peer-reviewed journal. Huang is one of the lead authors of the study, along with Peter Chai, an assistant professor of emergency medicine at Brigham and Women’s Hospital, and Claas Ehmke, a visiting scholar from ETH Zurich.
Brigham and Women’s focuses on vitals
When COVID-19 cases began surging in Boston in March, many hospitals, including Brigham and Women’s, set up triage tents outside their emergency departments to evaluate people with novel coronavirus symptoms. One major component of this initial evaluation is measuring vital signs, including body temperature.
The MIT and Brigham and Women’s researchers came up with the idea to use robots to enable contactless monitoring of vital signs, to allow health care workers to minimize their exposure to potentially infectious patients. They decided to use existing computer vision technologies that can measure temperature, breathing rate, pulse, and blood oxygen saturation, and worked to make them mobile.

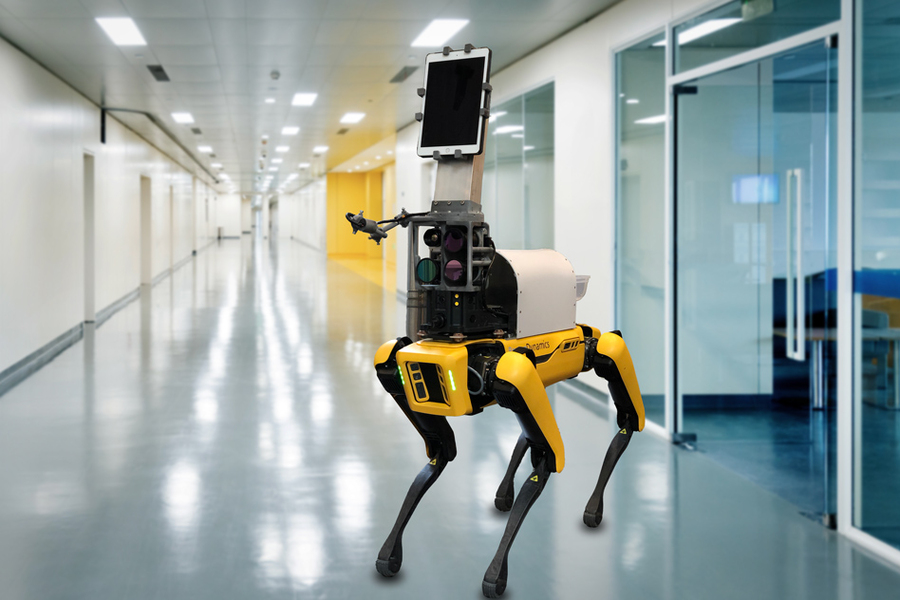

To achieve that, they used Spot. Health care workers can use a handheld controller to maneuver the robot to wherever patients are sitting. The researchers mounted four different cameras onto the robot — an infrared camera plus three monochrome cameras that filter different wavelengths of light.
Related content: “We tele-operated Spot around Golden Gate Park — from 3,000 miles away“; The Robot Report Podcast: More on tele-operating Spot
The researchers developed algorithms that allow them to use the infrared camera to measure both elevated skin temperature and breathing rate. For body temperature, the camera measures skin temperature on the face, and the algorithm correlates that temperature with core body temperature. The algorithm also takes into account the ambient temperature and the distance between the camera and the patient, so that measurements can be taken from different distances, under different weather conditions, and still be accurate.
Measurements from the infrared camera can also be used to calculate the patient’s breathing rate. As the patient breathes in and out, wearing a mask, their breath changes the temperature of the mask. Measuring this temperature change allows the researchers to calculate how rapidly the patient is breathing.
The three monochrome cameras each filter a different wavelength of light — 670, 810, and 880 nanometers. These wavelengths allow the researchers to measure the slight color changes that result when hemoglobin in blood cells binds to oxygen and flows through blood vessels. The researchers’ algorithm uses these measurements to calculate both pulse rate and blood oxygen saturation.
“We didn’t really develop new technology to do the measurements,” Huang said. “What we did is integrate them together very specifically for the COVID application, to analyze different vital signs at the same time.”
Robots enable continuous monitoring
In this study, the researchers performed the measurements on healthy volunteers. They are now making plans to test their robotic approach in people who are showing symptoms of COVID-19 in a hospital emergency department.
In the meantime, the researchers plan to focus on triage applications. In the longer term, they said they envision that the robots could be deployed in patients’ hospital rooms. This would allow the robots to continuously monitor patients and also allow doctors to check on them, via tablet, without having to enter the room. Both applications would require approval from the U.S. Food and Drug Administration.
The Brigham and Women’s research was funded by the MIT Department of Mechanical Engineering and the Karl van Tassel (1925) Career Development Professorship. The research described here has not yet been peer-reviewed by scientific or medical experts.
